Our Bulk Storage Silos

bulk storage silos 1

Bulk storage silos in diameters from 3.5 to 22 meters and capacities of 5.0 - 5000.0 metric tones are provided suited to a wide range of bulk material handling applications.

The range includes bolt together and continuously formed construction incorporating materials options of high carbon steel, galvanized steel, aluminum, plastic coated steels in material thickness from 1.5mm - 4mm.

The continuous forming principle is characterized by:

  • Automated manufacturing process for assured quality.
  • Formed joint ensures a very effective seal and extreme rigidity to the wall section.
  • Efficient erection process providing optimum economics.

Complete installations incorporating bulk unloading systems, mechanical handling, screeners, magnetic separators and dust filter collectors are supplied to provide an economic arrangement.

Features

  • Flexible transportation. All components can be packed onto steel crates and shipped within shipping containers.
  • Bolt together assembly for efficient and easy construction.
  • Can be easily disassembled and relocated.
  • Custom design to suit special application requirement such as material characteristics and site location.
  • Smooth wall design is an option, and ideal for special material storage requirement.

Fabrication Quality:

  • Designed & fabricated to NZ/AUS Civil standards, complete with Producer Statements One and Four (PS1 & PS4s)
  • Each structural steel batch sample is tested by creditable laboratories to meet NZ structure steel material requirement.
  • All production factories have been certified to SGS WPQR qualification
  • Welders hold ISO welding certificates.
  • Steel structure uses reinforced weld connections to comply with SGS visual testing and ultra-sonic testing requirements.

The range includes bolt together and continuously formed construction incorporating materials options of high carbon steel, galvanized steel, aluminium, plastic coated steels in material thickness from 1.5mm - 4mm.

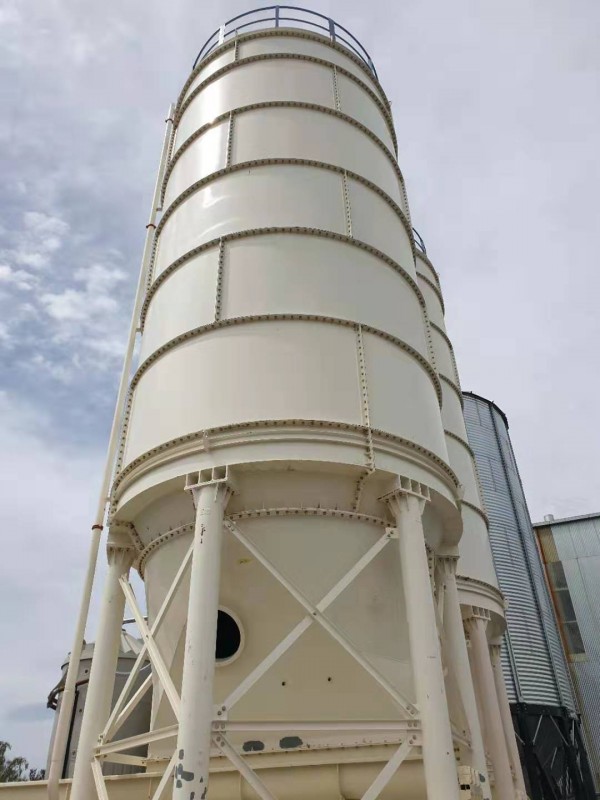

Bolt together silosbolt_silos.jpg

Grain Tech can supply high quality bolt together panel silos. These silos are easy to assemble with a strong, safe structure enabling them to be suitable for heavy duty applications including the cement industry. The panel design of the silos allows them to be efficiently packed into containers with minimal underutilized space and also allows silos of any size to be packed into a container. Another advantage of this silo design is the ease of relocation where necessary. The silos can be dismantled by unbolting and re-erected on the new site. The silos are supplied complete with all necessary panels, gasket material, fasteners, gasket applications tools and detailed assembly instructions.

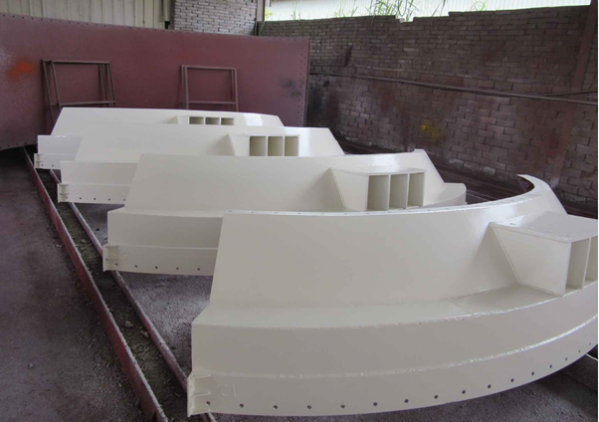

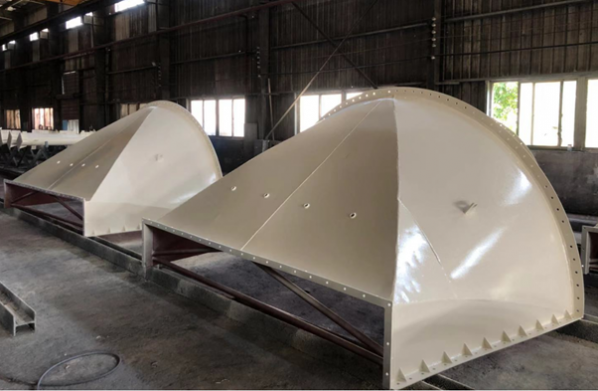

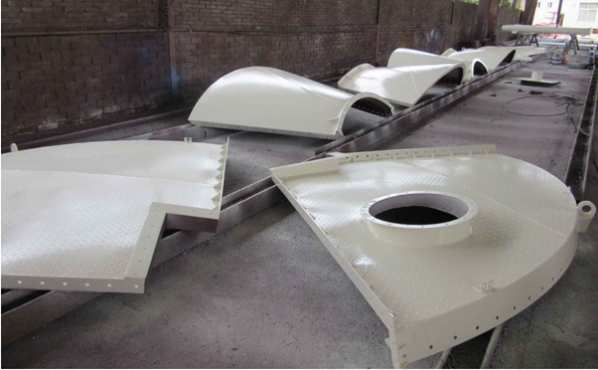

Modular Fabrication:

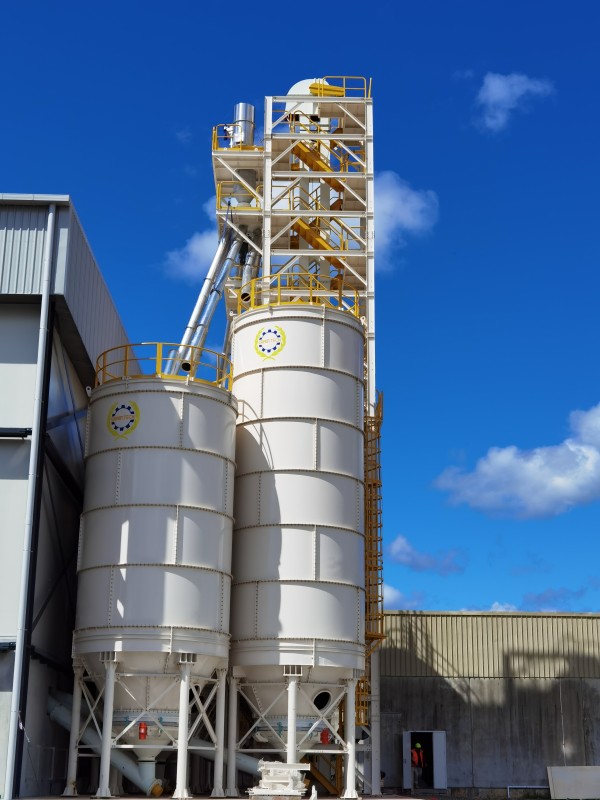

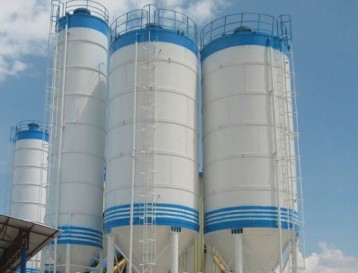

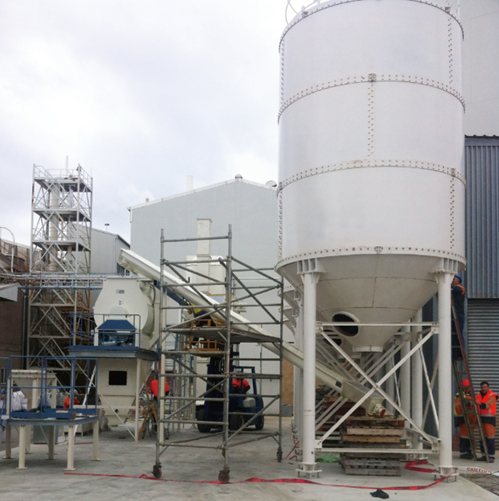

Silo Installation Examples:







Optional storage features:silo_2.jpg

Drying Systems

The range of continuous flow tower dryers are suited to varying capacity needs and product drying characteristics for the drying treatment of all kinds of grain and seed to ensure safe storage of these products over long periods.

Level Indicating Systems

High quality capacitor or paddle type level sensors are installed to enable process automation, alarms and operating convenience and efficiency.

Temperature Measuring Systems

The TMS automatically measures the temperature at varying levels within the silo. The recorded temperatures are accumulated, displayed and printed to enable complete product control. The system is equipped with audible and visual alarm functions, which help to minimize losses due to oxidation and unduly high temperature within the stored product.

Fumigation Systems

Efficient in silo fumigation systems may be fitted to control insects and prevent likely mould growth from insect damaged grain/seed.

Automated Control Systems

 The automated control systems, through electro-mechanical operational units fitted to the diverter valves, slide gate valves in combination with motion sensors, level sensors and limit switches enables advanced automated operation of the complete installation for reliable and convenient system management.
