Pelleting Press Technical Specification Sheet - GT800

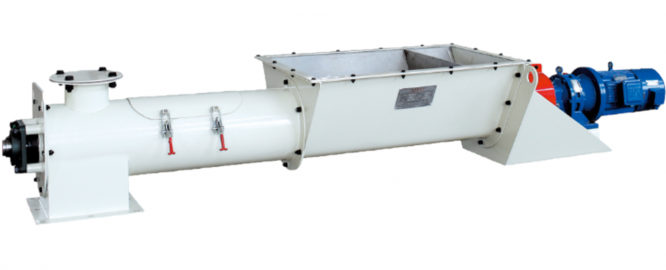

Screw FeederGTWL630_Screw_Feeder.png



Model: GTRK800

Capacity: 12-45 t/h

Length: 745mm Speed (of motor): 0-134 rpm

Feature: Every part of this machine that comes into contact with your material/product is made from stainless steel.

Note: This machine uses a frequency-conversion motor. To change the input load you need to control the feeder by using the transducer.

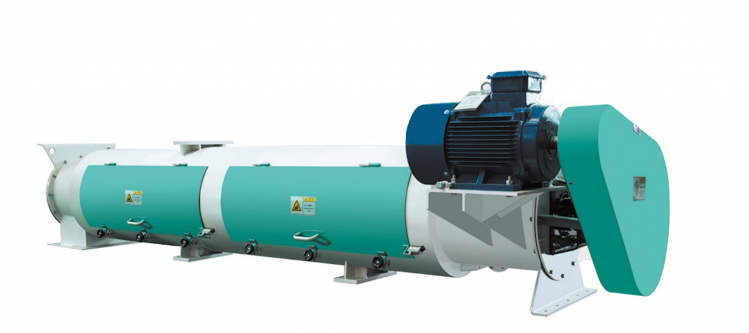

Model: GTTZ800

Power: 11kW

Volume: 0.37m³

Capacity: 27t/h

Length: 3000mm

Inner Diameter: 800mm

Main Motor Speed: 300rpm

Conditioning Time: 15-45s

Steam Consumption: ≥250kg/h

Features: Every part of this machine that comes into contact with your material/product is made from stainless steel. This machine consists of a motor, main shaft, paddle, shell, steam inlet, and a molasses inlet.

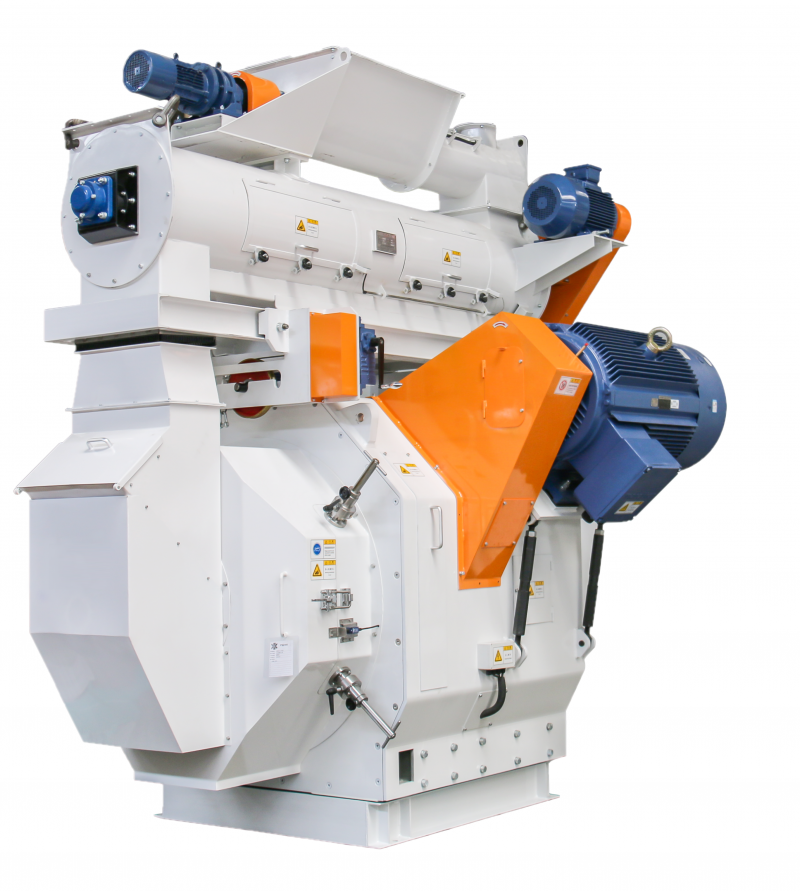

Pellet millGrain_Tech_800_series_pellet_mill.png



Model: GT800

Power: 160kW x 2 Capacity: 8-32t/h

Inner diameter of die: Φ800mm; efficiency width: 220mm

Number of rollers: 2; Roller material: GCr15

Speed of rotor: 154r/min; Linear speed of die is 6.45m/s

Steam Consumption: ≥0.5t/h; Steam pressure in conditioner: 0.1-0.4MPa

Features:

- 1 die unit

- An advanced twin-motor step-belt wrappingconnector driving system.

- Imported high-quality key parts to ensure that this machine will provide you with a long service life.

- Made according to international standards

- The main shaft is forged with alloy steel to ensure that it is both strong and durable.

- The twin-motor timing-belt step driving system results in a big moment, stable running, high output, and no oil leakage (which ensures that your feed products are hygienic and clean.

- A shear pin die protection system

- Widely used for producing high-quality poultry feed, fish feed, compound fertilizer, as well as pelleting cottonseed husks and other materials.
