From our computer screens to

your factory floor



Grain Tech uses the latest Solidworks software to complete detailed 3D models of plant equipment items planning in. Engineering design and drafting package is provided in order to complete the following requirements prior to component fabrication and installation.

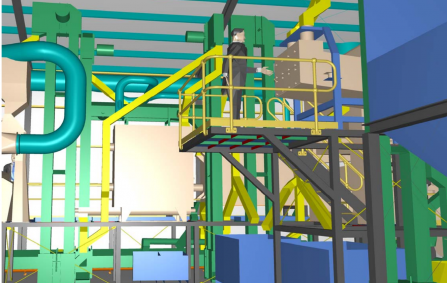

Grain Tech Solidworks 3D plant design nz example 1

  • Accurate and scaled three dimensional modelling of the entire plant/project

  • Preparation of installation arrangement design drawing details and planning in detail for the equipment and processes

  • Preparation of fabrication drawings for support stands, access platforms, brackets/fixtures, etc

  • Preparation of operation and instruction manuals together with equipment maintenance manuals











Our engineers can bring 3D images to life!

Over the years, our engineers have brought the following designs to life:

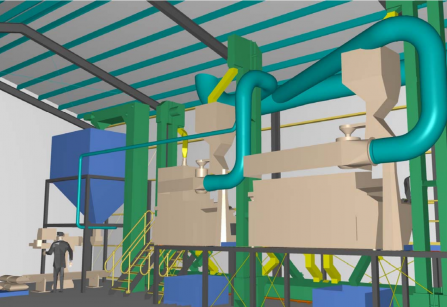

Grain Tech Solidworks 3D plant design nz example 2 2144_Finished_Plant_8 real world example

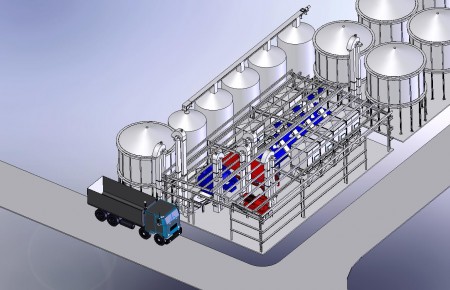

2144_Finished_Plant_35 real world example

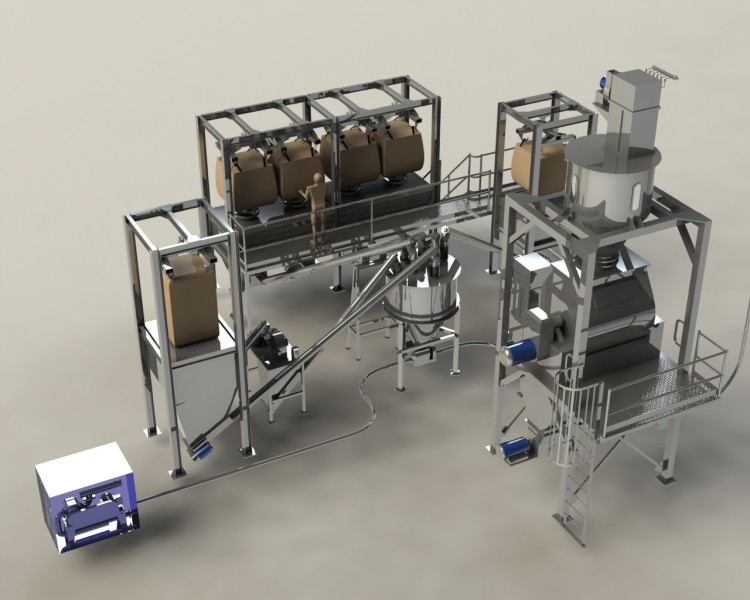

grain tech 3D factory grain processing nz model Example 1 grain tech 3D factory grain processing nz model real world result

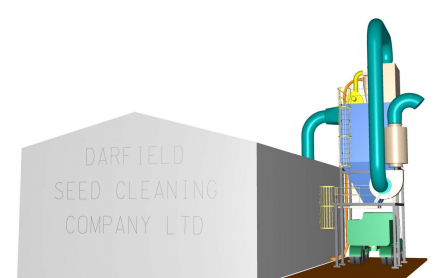

3D factory grain processing nz grain tech design Example 2 3D factory grain processing nz grain tech design real world 2

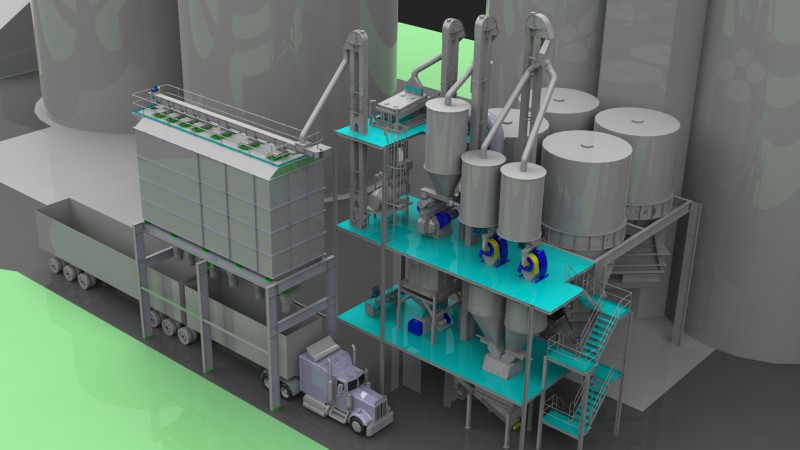

grain tech 3D modelling Example 3 nz grain tech 3D model bought to life
