SCREENERS

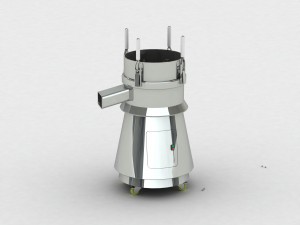

ZS Series High Efficiency Screenerhongda_ZS_series_high_efficieny_screening_machine.jpg

Application:

This machine is applied for continuous screening of powder and granular materials within the pharmaceutical, chemical, foodstuff, agriculture and related industries.

Operating Principle:

Comprised of a vertical out of balance vibration motor drive  assembly, screen base, mesh frame, screening chamber and rubber vibratory isolation arrangement. This can be used either for single layer or multi-layer grading and sifting and features a compact structure, convenient handling and maintenance, stable operation, low noise, compact size and heavy duty fabrication.

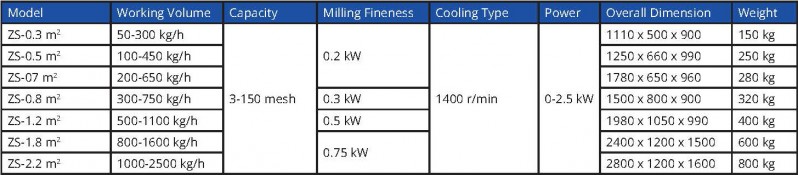

Technical Parameters:

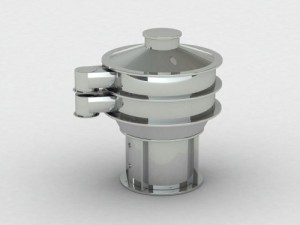

ZS Series Vibrating Screener


Application:

ZS series screener is applied for continuous screening of powder and granulates within the pharmaceutical, chemical, foodstuff, agriculture and related industries.

Operating Principle:

This machine is comprised of an inlet hopper, vibrating drive, screen frame assembly, coupling and motor. The vibrating screen frame assembly is fitted up to the vibratory motor spindle and bearing. When eccentric weight is conveyed to the centerline of the spindle through the motor drive, it generates centrifugal force under an unbalanced state by which material is forced to form regular eddies inside. The amplitude of the weight adjustment can be regulated according to different materials and screens. The machine features a compact structure, high productivity, low noise, low energy consumption and convenient operation and maintenance.

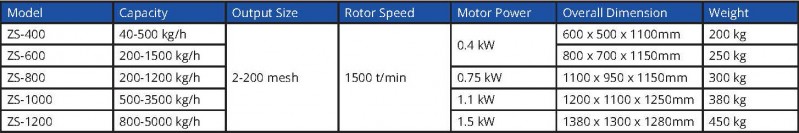

Technical Parameters:

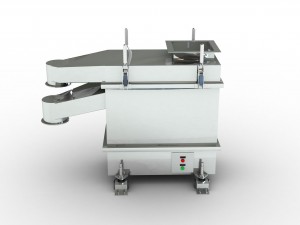

ZS Series Vibrating Rectangular Screener


Application:

Designed and engineered with advanced technical features and to meet GMP standards, this machine is widely used for grading and screening of a wide range of material types.

Operating Principle:

This machine is comprised of a screen box, vibration drive and damper arrangement. The vibrating frame and screen box are connected with isolation rubber dampers fixed to the screen frame. Centrifugal force is generated from the out of balance vibratory drive to impact a screening motion to the screen box. Up to four separations may be arranged according to requirements.

Technical Parameters:

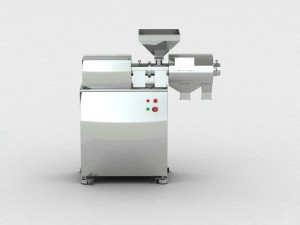

LXS Series Centrifugal Screenerhongda_LXS_series_centrifugal_screener.jpg

Application:

An ideal screening machine used in pharmaceutical, chemical, and the foodstuff industries. This screener is particularly significant for screening high fiber, high viscosity, and high humidity, electrostatic and clammy type of products.

Operating Principle:

Material is fed into the screen zone via a metering feed screw conveyor, where through centrifugal action the fine material passes through the screen aperture and the coarse fraction passes to over tail.

Technical Parameters:
