MIXERS

EYH Series 2D Motion Mixerhongda_EYH_series_2D_motion_mixer.jpg

Application:

This type of mixer is suitable for the mixing of dry, powder and granule materials for the pharmaceutical, chemical industries etc. and especially for the mixing of materials with high moisture content and a wide particle size distribution.

Operating Principle:

The mixing unit is a cylinder shaped barrel without any devices inside. Rotation is maintained via a trunion wheel arrangement where the relative drum position may be adjusted according to requirements.

Technical Parameters:

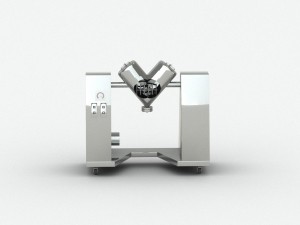

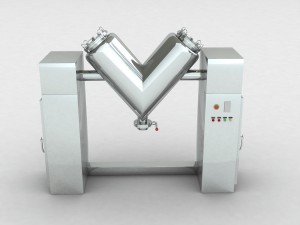

CH-V Series High Efficiency Mixer


Application:

This machine is used for the mixing of dry powder and granulate materials in the pharmaceutical, foodstuff, chemical and other industries.

Operating Principle:

The rotating V shaped mixing assembly is loaded via the top hatches and the mixing action is maintained through the interaction of the material within the chamber while rotating to produce a backwards and forwards motion. The discharge is from the outlet butterfly valve.

Technical Parameters:

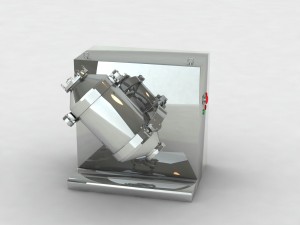

SWH Series 3D Motion Mixer


Application:

This machine is applicable for mixing powders and granulate material in the pharmaceutical, chemical, foodstuff, lighting, electronic, mining, metallurgy and scientific research industries.

Operating Principle:

This machine incorporates a base mounted governing motor shaft, rotary connection assembly and barrel unit. The material barrel is driven by the positive shaft to develop a complex movement including horizontal, vertical and rolling motions etc. which causes the material to move in three directions along the barrel for highly uniform mixing of various material types. This machine is a fully enclosed, high efficiency, energy saving mixer. When the material is being mixed, no centrifugal force applies and gravity segregation and laminar accumulation does not occur. In addition, it has larger loading capacity, short mixing time and high efficiency.

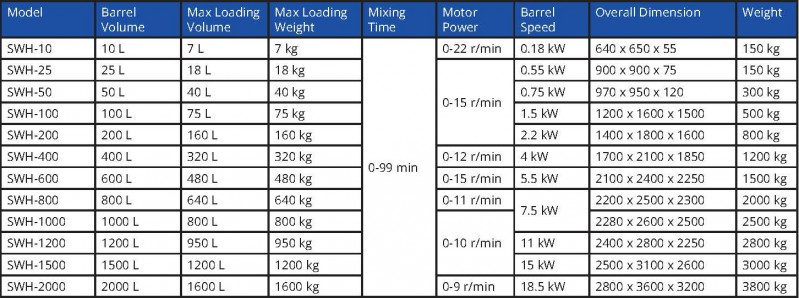

Technical Parameters:



CH-VI Series Forced-Type Agitator Mixer


Application:

Based on international advanced mixing technology and designed for optimum performance, the VI type forced mixer is used in pharmaceutical, foodstuff and the chemical industries. The mixing effect is achieved through the combination of the “V” shall and internal agitator action.

Operating Principle:

This machine can mix blends of relatively fine powder as well as agglomerates of materials with relatively high moisture content. The internal agitator refines and homogenizes the material as this is blended within the “V” shell mixing action.

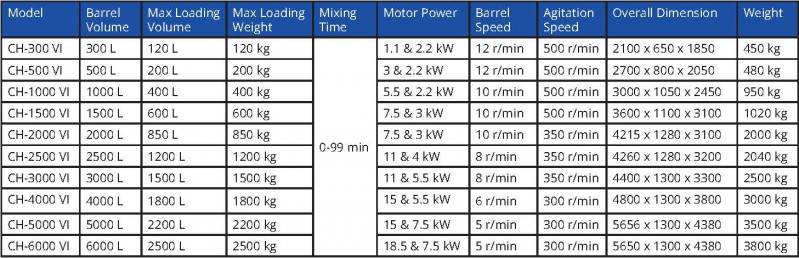

Technical Parameters:

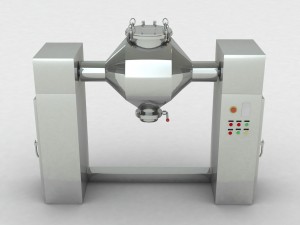

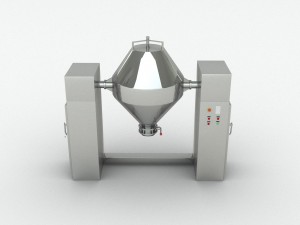

W Series Double Cone Mixerhongda_W_series_double_cone_mixer.jpg

Application:

Suited to blending free flowing powders and granular products for consistent cv specification requirements and capable of short time mixing. The Double Cone series mixers are used for material mixing in such industries as pharmacy, foodstuff, chemical, plastics and foodstuff industries.

Operating Principle:

This machine can rapidly mix free flowing materials and materials with a certain water content. With a high mixing speed and good mixing effect, the mixing uniformity rate can reach over 95%. The design meets all GMP standards and these mixers have a simple structure, convenient operation and maintenance.

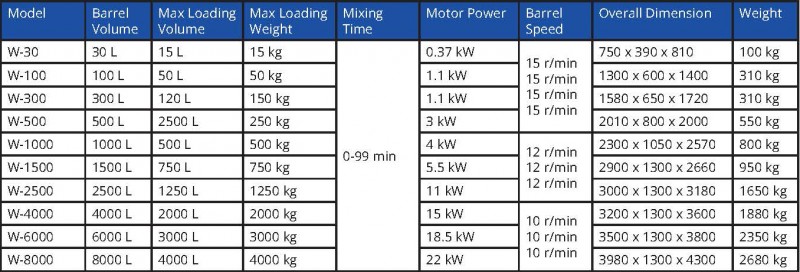

Technical Parameters:


CW Series Agitator Type Mixerhongda_CW_series_agitator_type_mixer.jpg

Application:

Developed for optimum mixing of agglomerated and variable particle size materials and based on the W series double cone mixer. This machine adds a stirring unit which can be used for material mixing in such industries as pharmacy, foodstuff, chemical and related industries.

Operating Principle:

This machine can rapidly mix free flowing materials and materials with a certain water content. With a high mixing speed and good mixing effect, the mixing uniformity rate can reach over 95%. The design meets all GMP standards and these mixers have a simple structure, convenient operation and maintenance.

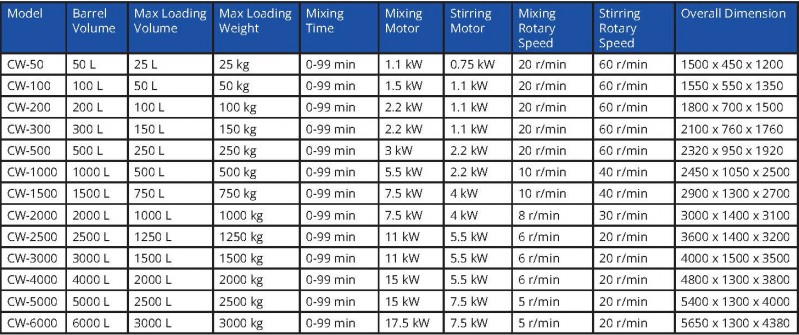

Technical Parameters:

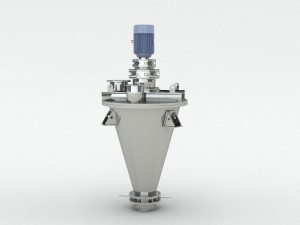

DLH Series Nauta Mixerhongda_DLH_series_nauta_mixer.jpg

Application:

This is a new type high efficiency and high precision mixing machine which is widely used for mixing of powder or paste materials in the pharmaceutical and feed industries.

Operating Principle:

The machine consists of single screw and type S blades. It features a large agitating area with a high mixing speed and no dead areas. It is more suitable for mixing material with great disparity in specific weight and mixing characteristics. This machine is fabricated from stainless steel and is in compliance with GMP standard.

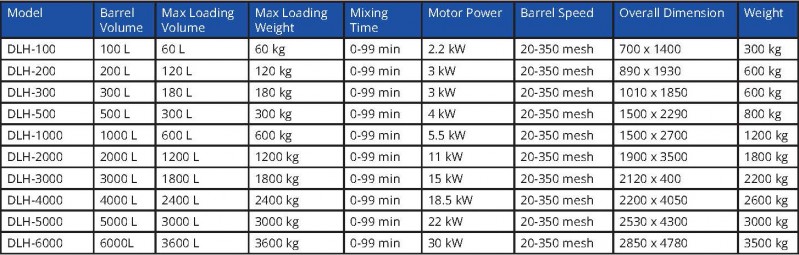

Technical Parameters:

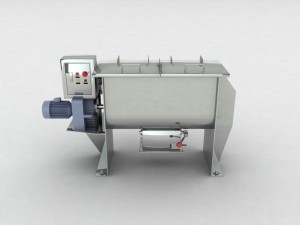

WLDH Series Horizontal Ribbon Mixerhongda_WLDH_series_horizontal_ribbon_mixer.jpg

Application:

The WLDH series Horizontal Ribbon mixer is a well proven product which ensures high efficiency mixing. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluid material), mixing within the fields of the chemical, pharmaceutical and foodstuff industries.

Operating Principle:

WLDH series mixer is comprised of a mixing barrel, spiral ribbon and driving assembly. The spiral ribbon is made of two layers that are the inner ribbon which conveys the material to move outwards while the external ribbon conveys the material to move inwards. This forms an efficient circulation of material within the machine body; the ribbon mixer can achieve a rapid mixing efficiency in a very short period. These units are fabricated in stainless steel and complies with the GMP standards.

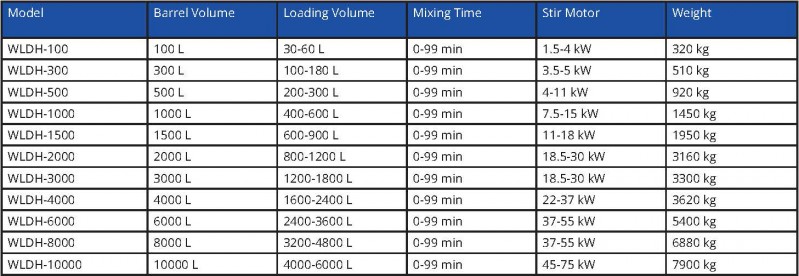

Technical Parameters:

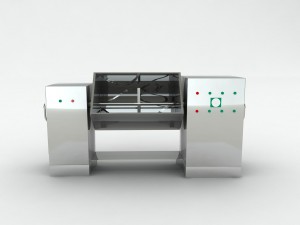

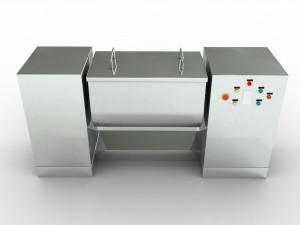

CH Series Horizontal Single “Z” Arm Type Mixerhongda_CH_series_horizontal_single_z_arm_type_mixer.jpg

Application:

This stainless steel horizontal “Z” arm type mixer is widely used for mixing powdery or paste material in the pharmaceutical, chemical and foodstuff industries.

Operating Principle:

The” Z” type paddle is rotated through a mechanical driving action which pushes the material to turn repeatedly and mix uniformly. Operated with an electrical control, it can set the mixing time to automatic stop and the electric discharge operates thus improving the mix quality of each batch of material and reaching a high homogeneous finished mix blend.

Standard:

All contact parts are fabricated from stainless steel and the machine has a front tilt for discharge.

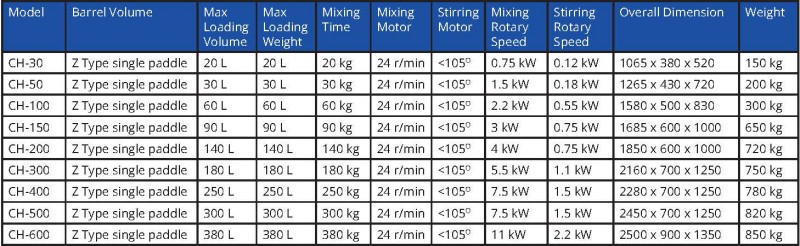

Technical Parameters:


WSH Series Double “Z” Arm Type Mixerhongda_WSH_series_double_z_arm_type_mixer.jpg

Application:

This machine is horizontal double “Z” arm type mixer which is widely used in pharmaceutical, chemical and foodstuff industries for mixing powder or paste material and especially for high viscosity and high density material.

Operating Principle:

The double “Z” type paddles provide a mixing action which is a combination of bulk movement, smearing, stretching, folding, dividing and re-combining as the material is pulled and squeezed against blades, saddle and side walls. The blades are pitched to achieve end to end circulation. All contact parts are in stainless steel and the machine has a front tilt for discharge. Features for automated operation are provided.

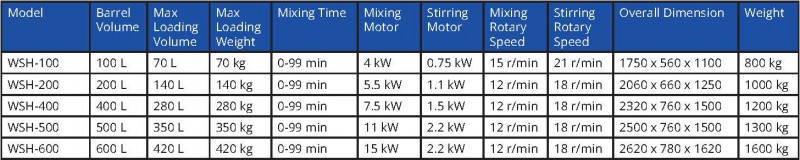

Technical Parameters:
