GRANULATORS

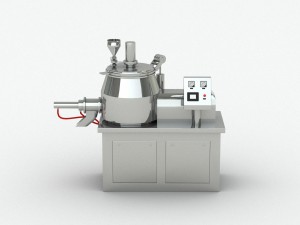

GHL Series High Speed Mixing Granulatorhongda_ghl_series_high_speed_mixing_granulator.jpg

Application:

 The GHL high speed mixing granulator is a high efficiency unit which can mix different types of powder material to granules in one procedure. It is widely used for pharmaceutical, foodstuff and chemical industry applications.

Operating Principle:

 The powder material and adhesive are blended within the mixing chamber for transferring through the high speed cutting assembly to from uniform granules.

Features:

  1. The machine incorporates a horizontal structure mixing arrangement for optimum efficiency.

  2. The drive shaft is fitted with air purge seals for secure leak proof operation.

  3. Granulation process incorporates fluidisation for efficient operation and flow ability with a reduced drying time required.

  4. Compared with the traditional process, there is a saving of approx. 25% in binder required.

  5. The time for mixing in the dry stage is 2 minutes and the time for granulating is 1 – 4 minutes. Compared with the traditional process which is 4 – 5 times longer.

  6. All operations including dry mixing, liquid addition and granulation are performed under the GMP standards.

  7. The complete operation has inbuilt safety and protective measures.

  8. The mixing and cutting speeds are controlled through a frequency variator to enable the granule particle size to be regulated.

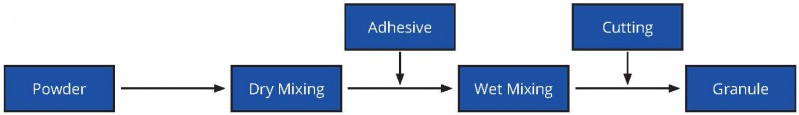

Flow Chart:

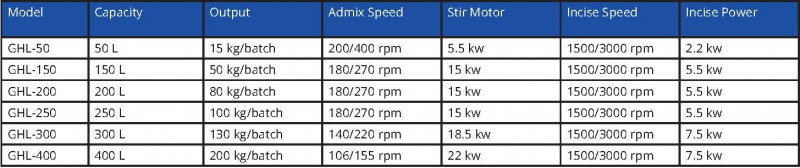

Technical Parameters:

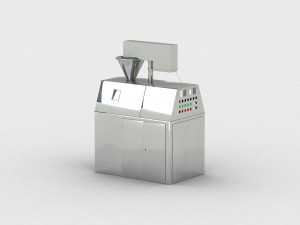

GK Series Dry Granulator


Application:

This is a new generation unit that utilizes the crystallized water within the material to pelletise the powder into granules. The machine features a novel and advanced design structure, has stable and reliable performance and is easy to maintain and clean. Granules made by the machine can be pressed into tablets or capsules and is mainly used for granulation in the pharmaceutical, chemical foodstuff and other related industries. It is especially used for granulation of materials not suitable for the wet granulation process.

Technical Parameters:

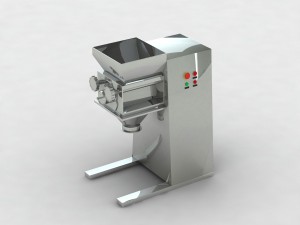

YK Series Reciprocating Granulator


Application:

Widely used in the pharmaceutical, chemical and foodstuff industries for producing various size granules from agglomerated and lumpy materials. These machines are ideal for preparing block and lump product ready for further incorporation into blends, mixes and solutions. Finish is in food grade stainless steel.

Operating Principle:

The reciprocating arm is fitted with either beaters, brushes or UHMW polyethylene paddles. The machine agitates against the fixed profiled screen which sizes the finished product according to aperture fitted. the high speed cutting assembly to from uniform granules.

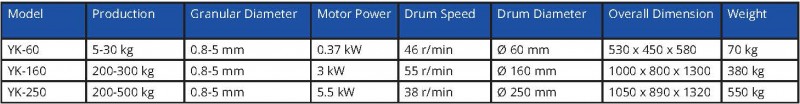

Technical Parameters:

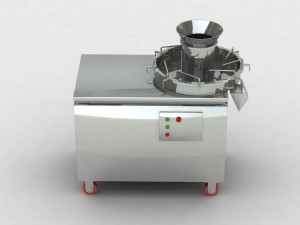

ZL Series Rotating Granulator


Application:

The rotating granulator is the ideal equipment for applications within the pharmaceutical, foodstuffs, feedstuffs, chemical and solid beverage type industries and is especially for materials having a high viscosity. It operates continuously to produce an even and free form granulated finished product ready for further drying. The operation is simple and easily setup while the granulator incorporates stainless steel contact parts and hygienic operating features enabling easy cleaning.

Technical Parameters:

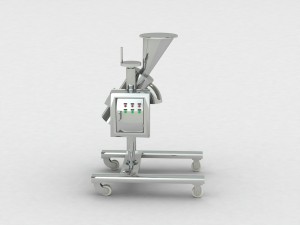

KZL Series High Speed Granulator


Application:

Widely used within the pharmaceutical, chemical and foodstuff industries with good effect. In operation, a rotating knife set operates against the set screen having the required aperture size. Material particle size smaller than the screen passes to the discharge while the larger particle size materials are reduced. All contact parts are made of food grade stainless steel and the design is to GMP standards.

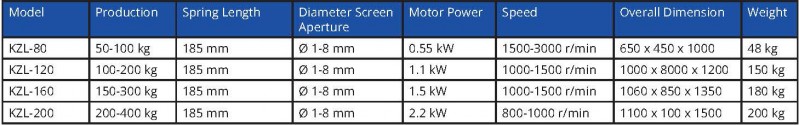

Technical Parameters:
